angle brackets

angle brackets PONTERE

glass-wall 90°

Art.-Nr.	8430
Merkmale	Angle infinitely adjustable from 60° – 100° Oblong hole adjustment
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-wall 90°

Details Assembly instructions

Art.-Nr.	8418
Merkmale	Fixed Oblong hole adjustment
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-wall 180°

Details Assembly instructions

Art.-Nr.	8428
Merkmale	Oblong hole adjustment with cover plate Wall plate can be used left or right
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-wall 135°

Details Assembly instructions

Art.-Nr.	8427
Merkmale	Angle infinitely adjustable from 90° – 140° Oblong hole adjustment
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-glass 90°

Details Assembly instructions

Art.-Nr.	8421
Merkmale	Angle infinitely adjustable from 80° – 180°
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-glass 180°

Details Assembly instructions

Art.-Nr.	8422
Merkmale	Fixed
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

glass-glass 135°

Details Assembly instructions

Art.-Nr.	8425
Merkmale	Angle infinitely adjustable from 80° – 180°
Glasdicke	8 / 10 mm
Oberflächen	MS7 = Gloss chrome MS10 = Matt chrome MSPVD22 = Stainless steel optic

angle brackets FLAMEA⁺

glass-wall 90°

Details assembly instructions

Art.-Nr.	8194
Merkmale	wall mounting with oblong hole adjustment concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-wall 180°

Details assembly instructions

Art.-Nr.	8193
Merkmale	wall mounting with oblong hole adjustment concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8196
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 180°

Details assembly instructions

Art.-Nr.	8191
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-wall 90°

Details assembly instructions

Art.-Nr.	8199
Merkmale	fully adjustable from 60° – 100° concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-wall 135°

Details assembly instructions

Art.-Nr.	8189
Merkmale	fully adjustable from 100° – 135° concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8198
Merkmale	fully adjustable from 80° – 180 concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

wall-glass-wall 90°

Details assembly instructions

Art.-Nr.	8195
Merkmale	double-sided mounting bracket concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass-glass 90°

Details assembly instructions

Art.-Nr.	8197
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

angle brackets FLAMEA⁺SN

glass-wall 90°

Details assembly instructions

Art.-Nr.	8194_-SN
Merkmale	wall mounting with oblong hole adjustment concealed screws with cover plate
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8196_-SN
Merkmale	concealed screws with cover plate
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss

angle brackets PAVONE

glass-wall 90°

Details assembly instructions

Art.-Nr.	8398
Merkmale	flush glass mounting bracket inside with oblong hole adjustment with cover plate point fixture adjustable 2 mm in all directions
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8399
Merkmale	flush glass mounting with cover plate point fixture adjustable 2 mm in all directions
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-wall 90°

Details assembly instructions

Art.-Nr.	8397
Merkmale	flush glass mounting bracket outside with oblong hole adjustment with cover plate point fixture adjustable 2 mm in all directions
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

angle brackets FARDELLO

glass-wall 90°

Details assembly instructions

Art.-Nr.	8187
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-wall 90°

Details assembly instructions

Art.-Nr.	8178
Merkmale	without mounting plate fastening screw incl. screws are visible
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-wall 90°

Details assembly instructions

Art.-Nr.	8171
Merkmale	fully adjustable from 60° – 100°
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-wall 135°

Details assembly instructions

Art.-Nr.	8173
Merkmale	fully adjustable from 100° – 140° screws are visible
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-wall 180°

Details assembly instructions

Art.-Nr.	8174
Merkmale	wall mounting with oblong hole adjustment with cover plate screws are visible
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-glass 90°

Details assembly instructions

Art.-Nr.	8188
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8175
Merkmale	fully adjustable from 80° – 180° screws are visible
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

angle brackets FARFALLA, PILLANGO, PAPILLON

glas-wall 90°

Details assembly instructions

Art.-Nr.	8106
Merkmale	wall mounting with oblong hole adjustment with cover plate fixed/li>
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

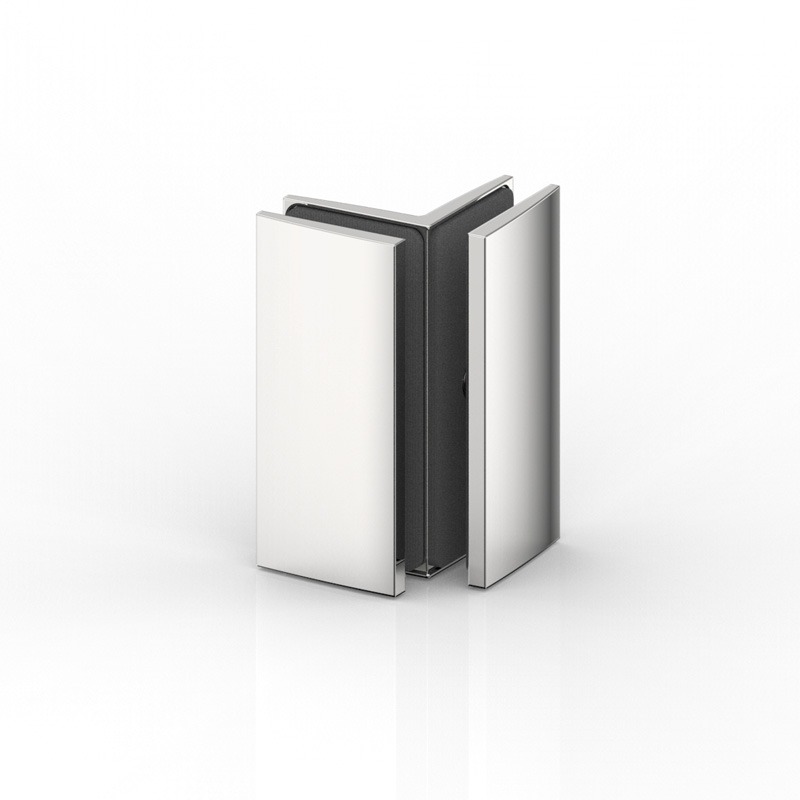

glass-glass 90°

Details assembly instructions

Art.-Nr.	8108
Merkmale	fixed
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-wall 180°

Details assembly instructions

Art.-Nr.	8110
Merkmale	wall mounting with oblong hole adjustment with cover plate mounting plate can be used left or right
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-wall 90°

Details assembly instructions

Art.-Nr.	8107
Merkmale	wall mounting with oblong hole adjustment fixed concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

glass-glass 90°

Details assembly instructions

Art.-Nr.	8109
Merkmale	concealed screws with cover plate
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic ZNPVD35 = black matt ZNPVD36 = black gloss

angle brackets TURA

glass-wall 90°

Details assembly instructions

Art.-Nr.	8968
Merkmale	mounting plate can be used left or right concealed screws
Glasdicke	8 / 10 / 12 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-glass 90°

Details assembly instructions

Art.-Nr.	8969
Merkmale	concealed screws
Glasdicke	8 / 10 / 12 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

Winkelverbinder NIVELLO⁺

glas-wall 90°

Details assembly instructions

Art.-Nr.	8380
Merkmale	wall mounting with oblong hole adjustment with cover plate point fixture adjustable 2 mm in all directions flush mounted
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glass-glass 90°

Details assembly instructions

Art.-Nr.	8382
Merkmale	mit Abdeckkappe Punkthalter 2 mm in jede Richtung verstellbar flächenbündig
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

glass-wall 90°

Details assembly instructions

Art.-Nr.	8381
Merkmale	Lasche innen mit Langlochverstellung mit Abdeckkappe Punkthalter 2 mm in jede Richtung verstellbar flächenbündig
Glasdicke	8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Winkelverbinder FLAMEA, FLINTER, NIVELLO, FLUTURE

Glas-Wand 90°

Details Montageanleitung

Art.-Nr.	8187
Merkmale	Wandbefestigung mit Langlochverstellung verdeckte Verschraubung mit Abdeckkappe
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Glas 90°

Details Montageanleitung

Art.-Nr.	8188
Merkmale	verdeckte Verschraubung mit Abdeckkappe
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Wand 90°

Details Montageanleitung

Art.-Nr.	8170
Merkmale	Wandbefestigung mit Langlochverstellung verdeckte Verschraubung mit Abdeckplatte
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Glas 90°

Details Montageanleitung

Art.-Nr.	8172
Merkmale	starr
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Wand 180°

Details Montageanleitung

Art.-Nr.	8174
Merkmale	Wandbefestigung mit Langlochverstellung mit Abdeckplatte
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Wand 90°

Details Montageanleitung

Art.-Nr.	8178
Merkmale	Wandbefestigung mit Langlochverstellung ohne sichtbare Befestigungslasche inklusive Befestigungsschraube
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Wand 90°

Details Montageanleitung

Art.-Nr.	8171
Merkmale	Wandbefestigung mit Langlochverstellung mit Abdeckplatte Winkelgradzahl stufenlos von 60° – 100° verstellbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Wand 135°

Details Montageanleitung

Art.-Nr.	8173
Merkmale	Wandbefestigung mit Langlochverstellung mit Abdeckplatte Winkelgradzahl stufenlos von 100° – 140° verstellbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

Glas-Glas 90°

Details Montageanleitung

Art.-Nr.	8175
Merkmale	Winkelgradzahl stufenlos von 80° – 180° verstellbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt

angle brackets

angle brackets PONTERE

glass-wall 90°

glass-wall 90°

glass-wall 180°

glass-wall 135°

glass-glass 90°

glass-glass 180°

glass-glass 135°

angle brackets FLAMEA+

glass-wall 90°

glass-wall 180°

glass-glass 90°

glass-glass 180°

glass-wall 90°

glass-wall 135°

glass-glass 90°

wall-glass-wall 90°

glass-glass-glass 90°

angle brackets FLAMEA+SN

glass-wall 90°

glass-glass 90°

angle brackets PAVONE

glass-wall 90°

glass-glass 90°

glass-wall 90°

angle brackets FARDELLO

glass-wall 90°

glass-wall 90°

glass-wall 90°

glass-wall 135°

glass-wall 180°

glass-glass 90°

glass-glass 90°

angle brackets FARFALLA, PILLANGO, PAPILLON

glas-wall 90°

glass-glass 90°

glass-wall 180°

glass-wall 90°

glass-glass 90°

angle brackets TURA

glass-wall 90°

glass-glass 90°

Winkelverbinder NIVELLO+

glas-wall 90°

glass-glass 90°

glass-wall 90°

Winkelverbinder FLAMEA, FLINTER, NIVELLO, FLUTURE

Glas-Wand 90°

Glas-Glas 90°

Glas-Wand 90°

Glas-Glas 90°

Glas-Wand 180°

Glas-Wand 90°

Glas-Wand 90°

Glas-Wand 135°

Glas-Glas 90°

Kontakt

Utbildning

Service

Pauli Scandinavia

angle brackets FLAMEA⁺

angle brackets FLAMEA⁺SN

Winkelverbinder NIVELLO⁺
